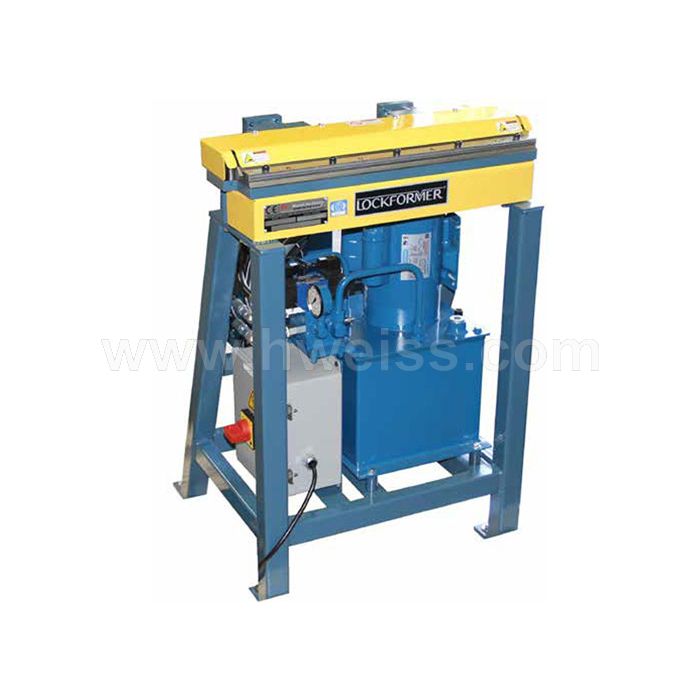

Lockformer Hydraulic Button Punch Cheekbender
This machine provides any shop with a complete work center for fabricating fittings. One side of the dual purpose bending die bends and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings...
This machine provides any shop with a complete work center for fabricating fittings. One side of the dual purpose bending die bends and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings. Self contained hydraulic system.
- Manufacturer:
- Lockformer
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
This machine provides any shop with a complete work center for fabricating fittings. One side of the dual purpose bending die bends and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings. Self contained hydraulic system.
- Capacity: 20 gauge or lighter
- Depth of Pocket/Size: Variable
- Other: Self contained hydraulic system
- Motor Voltage: 3/4 HP, 115/230 volts, 60 cycle, single phase, A. C. , 1,800 RPM
- Dimensions: Length: 24", Width: 28", Passline: 34"
- Weight: 200 lbs
This machine provides any shop with a complete work center for fabricating fittings. One side of the dual purpose bending die bends and punches the cheeks for Button Punch Snap Lock 90-degree fittings. Flip the die over and you have a 20 gauge Power Cheek Bender for making right-angle flanges for Pittsburgh fittings. Self contained hydraulic system.
- Capacity: 20 gauge or lighter
- Depth of Pocket/Size: Variable
- Other: Self contained hydraulic system
- Motor Voltage: 3/4 HP, 115/230 volts, 60 cycle, single phase, A. C. , 1,800 RPM
- Dimensions: Length: 24", Width: 28", Passline: 34"
- Weight: 200 lbs
